850H200 Timing Belt

850H200 Timing Belt

Weight (Kg) : 0.00

Attribute Value
Length (mm) 2159
Brand Medway
Width (inch) 2
Number of Teeth 170
Length (inch) 85

Product facts, help and info

Qty:
Lead time is 5-7 days

€ 55.42

Technical Details

850H200 Timing Belt

The Medway classical timing belt (synchronous) has a trapezoidal tooth profile providing a positive drive by the meshing of belt teeth with the grooves of a relating timing belt pulley. It has a wide range of applications from typewriters to heavy industrial machinery.

Construction and Features
  • The glass fibre tensile member provides high strength to transmit tensile forces and withstand shock loads with
    virtually no stretch.
  • The abrasive resistant cover protects the teeth when in contact with the pulley and helps to reduce noise.
  • The meshing of the teeth prevents belt slip and speed variations, thus ensuring perfect synchronisation and positive
    drive.

    Standards
  • Conform to 1S05296, they meet 1S01813 for static conductivity and have an operating temperature range of -25°C - +100°C.

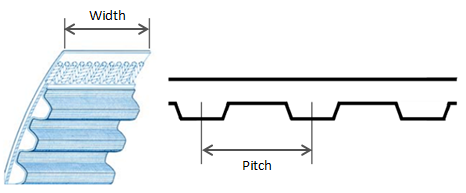

    H Section timing belt - 1/2inch pitch (12.7mm)

    • 850H200 Timing Belt

    contact_details

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
