9100-A Stainless Steel Ball Transfer Unit
9100-A Stainless Steel Ball Transfer Unit
Weight (Kg) : 0.00

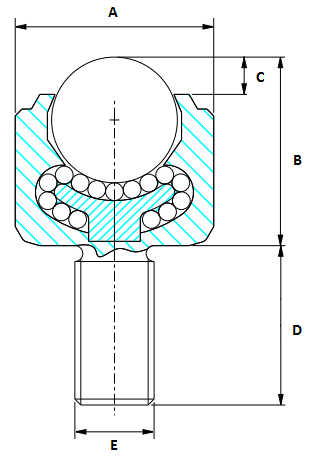

| Attribute | Value |
|---|---|
| E - See Diagram (mm) | M8 x 1.25 |
| C - See Diagram (mm) | 3.8 |
| Thread Height - D (mm) | 16.1 |
| Body Height - B (mm) | 19.1 |
| Overall Dia - A (mm) | 20 |
| Ball Diameter (mm) | 12.7 |
| Load (kg) | 46 |
| Part Number | 9100 |
Product facts, help and info
Technical Details
| 9100-A Stainless Steel Ball Transfer Unit High capacity range, threaded stud ball transfer unit. Stainless steel ball (AISI 440) but other materials as standard. |
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
