9134-A Stainless Steel Ball Transfer Unit
9134-A Stainless Steel Ball Transfer Unit
Weight (Kg) : 0.00

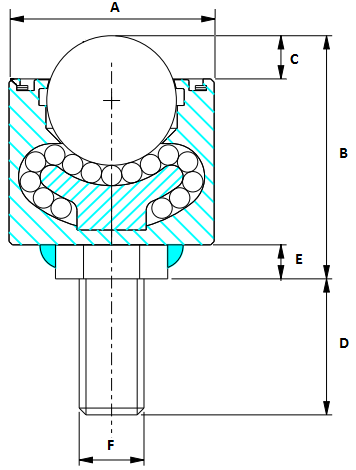

| Attribute | Value |
|---|---|
| Thread Height - D (mm) | 25.4 |
| C - See Diagram (mm) | 6.4 |
| Body Height - B (mm) | 50.5 |
| Overall Dia - A (mm) | 50.8 |
| Ball Diameter (mm) | 25.4 |
| Load (kg) | 375 |
| Part Number | 9134 |
| E - See Diagram (mm) | 6 |
| Thread - F (mm) | 1/2inch UNF |
Product facts, help and info
Technical Details
| 9134-A Stainless Steel Ball Transfer Unit High capacity range, threaded stud ball transfer unit. Stainless steel ball (AISI 440) but other materials as standard. Thread height: 25.4mm |
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
