9143 Chrome Ball Transfer Unit
9143 Chrome Ball Transfer Unit
Weight (Kg) : 0.00

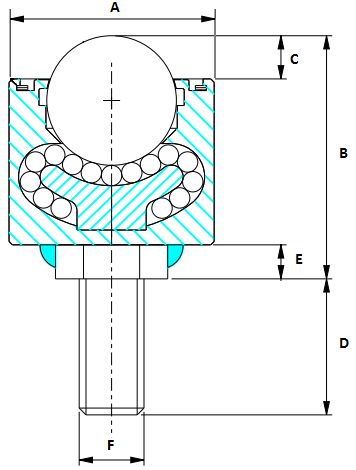

| Attribute | Value |
|---|---|
| Overall Dia - A (mm) | 60 |
| Body Height - B (mm) | 71.5 |
| C - See Diagram (mm) | 12.7 |
| Ball Diameter (mm) | 38.1 |
| Load (kg) | 1100 |
| Part Number | 9143 |
| Thread Height - D (mm) | 40 |
| E - See Diagram (mm) | 10 |
| Thread - F (mm) | M20 x 2.5 |
Product facts, help and info
Technical Details
| 9143 Chrome Ball Transfer Unit High capacity range, threaded stud ball transfer unit. Standard chrome ball Thread height: 40mm |
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
