9230-A Steel Ball Transfer Unit (Stainless Ball)
9230-A Steel Ball Transfer Unit (Stainless Ball)
Weight (Kg) : 0.00
| Attribute | Value |
|---|---|

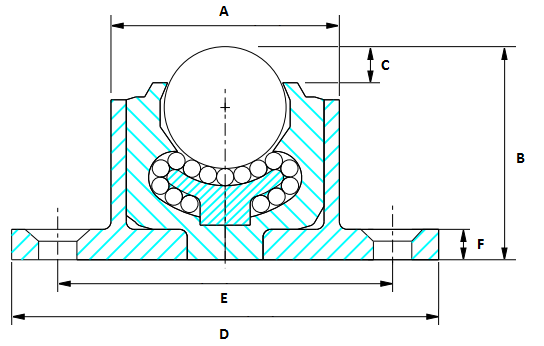

| B - See Diagram (mm) | 44.5 |
| Bolt Hole Size - E (mm) | 57.9 |
| Flange Size - D (mm) | 76.2 |
| Overall Body Dia - A (mm) | 50 |
| Ball Dia (mm) | 25.4 |
| Load (kg) | 375 |
| C - See Diagram (mm) | 6.4 |
| F - See Diagram (mm) | 6.4 |
Product facts, help and info
Technical Details
| 9230-A Steel Ball Transfer Unit (Stainless Ball) High capacity range, flange mounted ball transfer unit. Stainless steel balls (AISI 440) but other materials as standard. |
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
