9401 Chrome Ball Transfer Unit
9401 Chrome Ball Transfer Unit
Weight (Kg) : 0.00
| Attribute | Value |
|---|---|
| Overall Dia (mm) | 20.6 |
| Pre-load (kg) | 7 |
| Ball Dia (mm) | 12.7 |
| Total Length (mm) | 46.2 |
Product facts, help and info
Technical Details

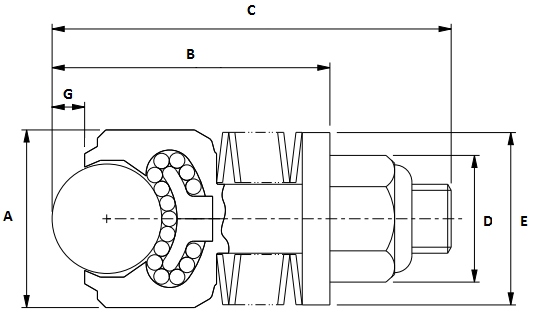

| 9401 Chrome Ball Transfer Unit High capacity, external spring loaded ball transfer unit. As seen on diagram below. A = 20.6mm B= 32.2mm C= 46.2mm D= 14.7mm E= 20mm Fixing holes (PCD)= N/A G= 3.8mm |
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
