9412-A Stainless Steel Ball Transfer Unit
9412-A Stainless Steel Ball Transfer Unit
Weight (Kg) : 0.00
| Attribute | Value |
|---|---|
| Total Length (mm) | 47.5 |
| Overall Dia (mm) | 22.2 |
| Pre-load (kg) | 23 |
| Ball Dia (mm) | 12.7 |
Product facts, help and info
Technical Details

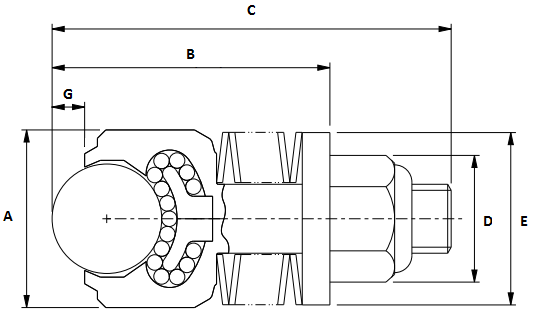

| 9412-A Stainless Steel Ball Transfer Unit High capacity, external spring loaded ball transfer unit. Stainless steel balls (AISI 440) but other materials as standard. As seen on diagram below: A = 22.2mm B= 39mm C= 47.5mm D= 14.7mm E= 20mm Fixing holes (PCD)= N/A G= 3.8mm |
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
