9425 Chrome Ball Transfer Unit
9425 Chrome Ball Transfer Unit
Weight (Kg) : 0.00
| Attribute | Value |
|---|---|
| Total Length (mm) | 77 |
| Overall Dia (mm) | 44 |
| Pre-load (kg) | 109 |
| Ball Dia (mm) | 25.4 |
Product facts, help and info
Technical Details

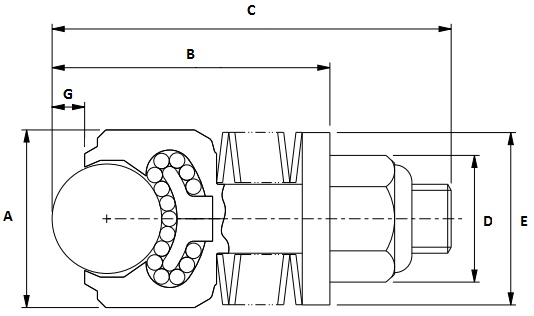

| 9425 Chrome Ball Transfer Unit High capacity, external spring loaded ball transfer unit As seen on diagram below: A = 44mm B= 63mm C= 77mm D= 19.2mm E= 31.8mm Fixing holes (PCD)= 3xM5 (24.8) G= 5.6mm |
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
