9431 Chrome Ball Transfer Unit
9431 Chrome Ball Transfer Unit
Weight (Kg) : 0.00
| Attribute | Value |
|---|---|
| Total Length (mm) | 95.3 |
| Overall Dia (mm) | 50.8 |
| Pre-load (kg) | 136 |
| Ball Dia (mm) | 25.4 |
Product facts, help and info
Technical Details

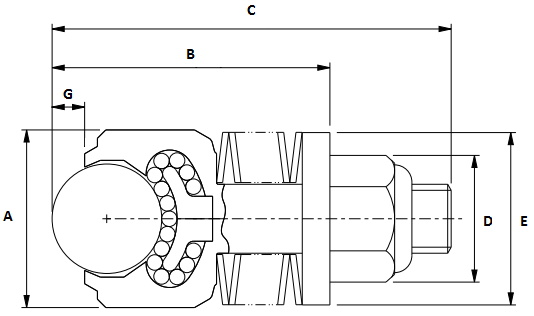

| 9431 Chrome Ball Transfer Unit High capacity, external spring loaded ball transfer unit As seen on diagram below: A = 50.8mm B= 79.6mm C= 95.3mm D= 19.2mm E= 38.1mm Fixing holes (PCD)= 3xM6 (29) G= 6.4mm |
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
