9451-A Stainless Steel Ball Transfer Unit
9451-A Stainless Steel Ball Transfer Unit
Weight (Kg) : 0.00
| Attribute | Value |
|---|---|
| Total Length (mm) | 200.9 |
| Overall Dia (mm) | 101.6 |
| Pre-load (kg) | 764 |
| Ball Dia (mm) | 50.8 |
Product facts, help and info
Technical Details

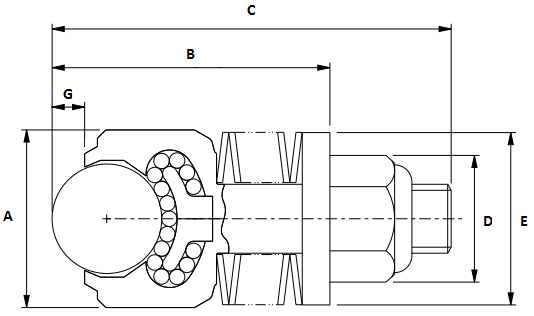

| 9451-A Stainless Steel Ball Transfer Unit High capacity, external spring loaded ball transfer unit. Stainless steel balls (AISI 440) but other materials as standard. As seen on diagram below: A = 101.6mm B= 175.1mm C= 200.9mm D= 57mm E= 101.6mm Fixing holes (PCD)= 4xM8 (76.2) G= 14.3mm |
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
