9540 Chrome Ball Transfer Unit
9540 Chrome Ball Transfer Unit
Weight (Kg) : 0.00
| Attribute | Value |
|---|---|
| Overall Dia (mm) | 69.9 |
| Ball Dia (mm) | 38.1 |
| Supports Load (kg) | 450 |
| Total Height (mm) | 114.3 |
Product facts, help and info
Technical Details

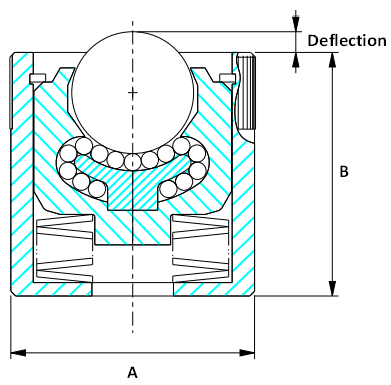

| 9540 Chrome Ball Transfer Unit High capacity, house spring loaded ball transfer unit As seen on diagram below: Deflection = 10 Load at max deflection= 960kg A= 69.9mm (8mm wide fine knurl on outside dia) B= 114.3mm |
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
