9850 Chrome Ball Transfer Unit
9850 Chrome Ball Transfer Unit
Weight (Kg) : 0.00
| Attribute | Value |
|---|---|
| Overall Height (mm) | 95 |
| Overall Body Dia (mm) | 100 |
| Ball Dia (mm) | 50.8 |
| Load (kg) | 2200 |
| Flange Dia (mm) | 110 |
Product facts, help and info
Technical Details

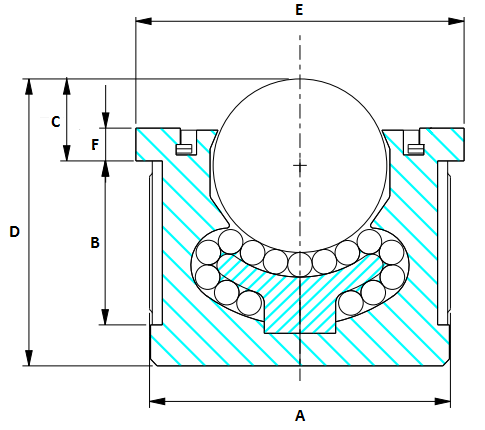

| 9850 Chrome Ball Transfer Unit High capacity, tolerance ring ball transfer unit As seen on diagram under photographic picture to the right (click to enlarge for clarity): A= 100mm B= 24mm C= 30mm D= 95mm E= 110mm F= 15.7mm |
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
