A100 V Belt

A100 V Belt

Weight (Kg) : 0.00

Attribute Value
Outside length 2586
Inside length 2540
Pitch length 2570

Product facts, help and info

Qty:
Lead time is 5-7 days

€ 10.60

Technical Details

A100 V Belt

The classical wrapped Medway V-belt is a temperature and oil resistant universal drive belt that has antistatic properties with good power transmission capabilities. It is suitable for both industrial machinery and agricultural equipment.

Construction and Features
  • The tensile member consists of a specially treated high strength polyester cord to transmit tensile forces and withstand shock loads.
  • The fabric jacket provides grip and protection against external agents and resistance to abrasion.
  • The belt compound converts tensile forces on the sidewalls into longitudinal forces in the tensile member.

    Standards
  • Conform to 1S04184, D1N2215 and BS3790, they meet 1S01813 for static conductivity and have an operating temperature range of -30°C - +60°C.

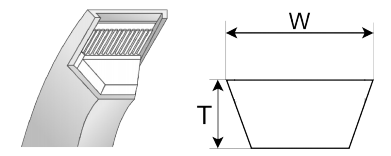

    Dimension
  • 13mm top width x 8mm deep

A100 V Belt

contact_details

Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
