D1400/1550 155mm External Circlip (Pack of 100)
D1400/1550 155mm External Circlip (Pack of 100)
Weight (Kg) : 0.00

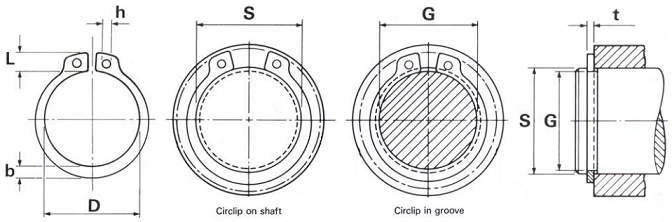

| Attribute | Value |
|---|---|
| Groove Dia (G) | 150.0 |
| L (max) | 13 |
| Internal Dia (D) | 146.0 |
| Pack Size | 100 |
| Thickness (t) | 4.00 |
| Shaft Size (S) | 155 |
| b | 12 |
| h (min) | 4 |
Product facts, help and info
Technical Details
| D1400/1550 155mm External Circlip (Pack of 100) 155mm external circlips for the retension of bearings, gears, pulleys etc. It is suitable for the majority of normal engineering applications, providing a rigid, yet tough, load bearing shoulder on a shaft. Standard material: The standard material for most circlips and retaining clips is carbon spring steel (CS). All circlips made from this material are austempered so as to give optimum ductility at the high hardness values necessary for correct function. |
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
