FY1.3/4TF SKF 1.3/4inch Bore Square Flange with Grub Screws

FY1.3/4TF SKF 1.3/4inch Bore Square Flange with Grub Screws

Weight (Kg) : 0.00

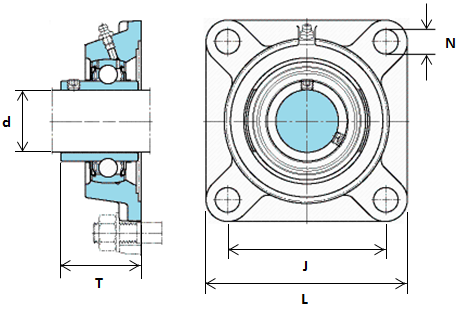

Attribute Value
Length/Width (L) 5.39inch (137mm)
Bolt Hole Centres (J) 4.13inch (105mm)
Overall Height with Bearing (T) 2.13inch (54.2mm)
Bore Size (d) 1.3/4inch (44.45mm)
Limiting Speed 4300r/min

Product facts, help and info

Qty:
Lead time is 5-7 days

€ 67.61

Technical Details

SKF FY1.3/4TF 1.3/4inch Bore Y-bearing - Cast Housing with a Square Flange & Grub Screws

Flanged Y-bearing units with a cast housing can be relubricated through a grease fitting in the housing. This makes them especially suitable for bearing arrangements that operate under the following conditions:

  • high levels of contamination
  • high speeds
  • high temperatures
  • relatively heavy loads

    • FY1.3/4TF SKF 1.3/4inch Bore Square Flange with Grub Screws

    contact_details

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
