FY15/16TF SKF 15/16inch Bore Square Flange with Grub Screws

FY15/16TF SKF 15/16inch Bore Square Flange with Grub Screws

Weight (Kg) : 0.00

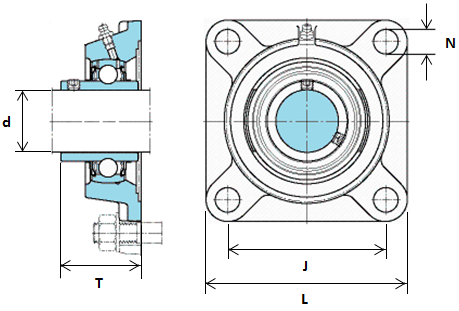

Attribute Value
Length/Width (L) 3.74inch (95mm)
Bolt Hole Centres (J) 2.76inch (70mm)
Bore Size (d) 15/16inch (23.813mm)
Overall Height with Bearing (T) 1.53inch (38.8mm)
Limiting Speed 7000r/min

Product facts, help and info

Qty:
Lead time is 5-7 days

€ 36.48

Technical Details

FY15/16TF SKF 15/16inch Bore Y-bearing - Cast Housing with a Square Flange & Grub Screws

Flanged Y-bearing units with a cast housing can be relubricated through a grease fitting in the housing. This makes them especially suitable for bearing arrangements that operate under the following conditions:

  • high levels of contamination
  • high speeds
  • high temperatures
  • relatively heavy loads

    • FY15/16TF SKF 15/16inch Bore Square Flange with Grub Screws
