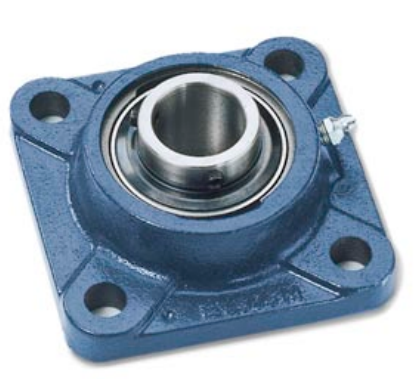

FY5/8TF SKF 5/8inch Bore Square Flange with Grub Screws
FY5/8TF SKF 5/8inch Bore Square Flange with Grub Screws
Weight (Kg) : 0.00

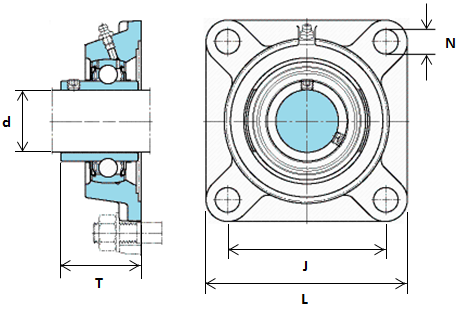

| Attribute | Value |
|---|---|
| Bolt Hole Dia (N) | |
| Length/Width (L) | 3.00inch (76.2mm) |
| Bolt Hole Centres (J) | 2.13inch (54mm) |
| Bore Size (d) | 5/8inch (15.875mm) |
| Overall Height with Bearing (T) | 1.20inch (30.6mm) |
| Limiting Speed | 9500r/min |
Product facts, help and info
Technical Details
| FY5/8TF SKF 5/8inch Bore Y-bearing - Cast Housing with a Square Flange & Grub Screws Flanged Y-bearing units with a cast housing can be relubricated through a grease fitting in the housing. This makes them especially suitable for bearing arrangements that operate under the following conditions:
|
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
