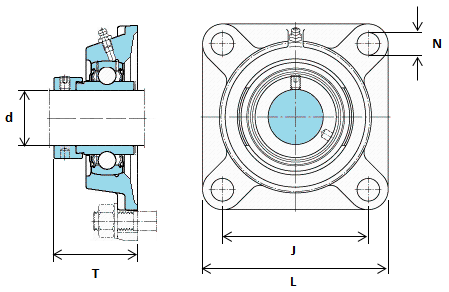

FY60WF SKF 60mm Bore Square Flange with Eccentric Locking Collar
FY60WF SKF 60mm Bore Square Flange with Eccentric Locking Collar
Weight (Kg) : 0.00
| Attribute | Value |
|---|---|
| Overall Height with Bearing (T) | 80.8 |
| Bolt Hole Dia (N) | 18 |
| Length/Width (L) | 175 |
| Bolt Hole Centres (J) | 143 |
| Bore Size (d) | 60 |
| Limiting Speed | 3400r/min |
Product facts, help and info
Technical Details
| SKF FY60WF 60mm Bore Y-bearing - Cast Housing with a Square Flange & Eccentric Locking Collar Flanged Y-bearing units with a cast housing can be relubricated through a grease fitting in the housing. This makes them especially suitable for bearing arrangements that operate under the following conditions: |
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
