GARL-6-UK 6mm Left Hand Rod End Bearing
GARL-6-UK 6mm Left Hand Rod End Bearing
Weight (Kg) : 0.00

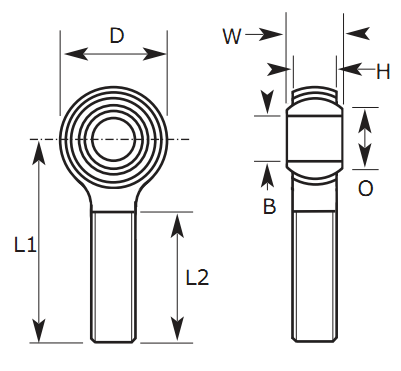

| Attribute | Value |
|---|---|
| Housing Depth (H) | 4.4 |
| Thread Direction | Left Hand |
| Length of Thread (L2) | 12 |
| Shaft Centre Height (L1) | 36 |
| Bore Size | 6 |
| Thread | M6x1.00 |
| Ball Width (W) | 6 |
| Housing Dia (D) | 21 |
| O | 9.3 |
Product facts, help and info
Technical Details
| GARL-6-UK 6mm Left Hand Rod End Bearing GAR-Series is our 3 piece large bore range of male rod ends, incorporating a 2 piece spherical bearing with a PTFE liner that is staked into the forged steel housing. Suitable for high shock loads and medium to heavy industrial/mechanical load applications requiring low friction. Materials Specification Temperature Range |
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
