MB-04 1/4inch Right Hand Rod End Bearing

Weight (Kg) : 0.00

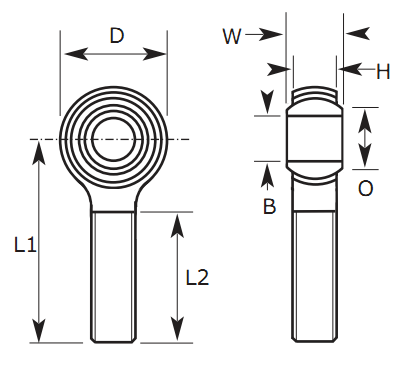

Attribute	Value
Ball Width (W)	0.375
Housing Depth (H)	0.281
Thread Direction	Right Hand
Length of Thread (L2)	1.000
Shaft Centre Height (L1)	1.562
Thread	1/4-28 UNF
Bore Size	1/4
Housing Dia (D)	0.750

Product facts, help and info

Qty:

Lead time is 5-7 days

€ 9.46

Technical Details

MB-04 1/4inch Right Hand Rod End Bearing

MB - Series is our 4-piece standard range of maintenance required general purpose male rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance.

Materials

Housing: Low carbon steel 230M07PB, zinc plated & colour passive

Race: Bronze LB4

Ball: Low carbon steel 230M07PB, case hardened & electro-less Nickel plated.

Specification

ELV & RoHS Compliant.

Temperature Range

-34°C to +149°C

MB-04 1/4inch Right Hand Rod End Bearing
