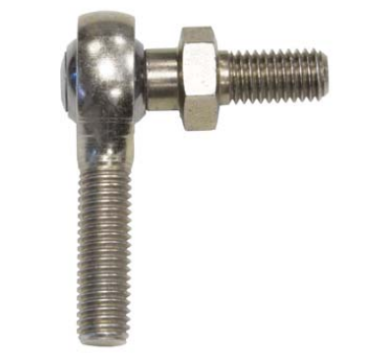

MB-04S 1/4inch Right Hand Studded Rod End Bearing

MB-04S 1/4inch Right Hand Studded Rod End Bearing

Weight (Kg) : 0.00

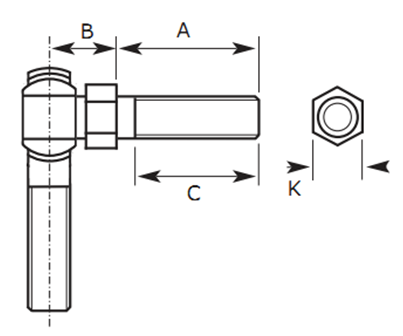

Attribute Value
Thread Length (C) 0.500
Stud Length (A) 0.562
Thread Direction Right Hand
Thread 1/4-28 UNF
Bore Size 1/4
B 0.485
K 0.375
A+B 1.047

Product facts, help and info

Qty:
Lead time is 5-7 days

€ 11.86

Technical Details

MB-04S 1/4inch Right Hand Studded Rod End Bearing

Materials
  • Housing: Low carbon steel 230M07PB, zinc plated & colour passive
  • Race: Bronze LB4
  • Ball: Low carbon steel 230M07PB, case hardened electro-less nickel plated.
  • Stud: Low carbon steel 230M07PB, zinc plated & colour passive

    • MB-04S 1/4inch Right Hand Studded Rod End Bearing

    contact_details

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
