MB-07S 7/16inch Right Hand Studded Rod End Bearing

MB-07S 7/16inch Right Hand Studded Rod End Bearing

Weight (Kg) : 0.00

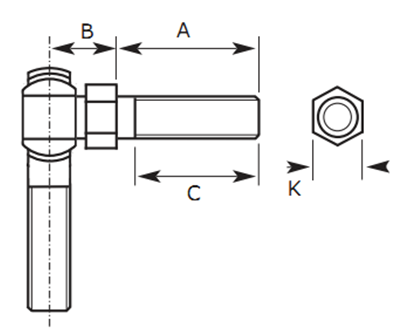

Attribute Value
Overall Length (A+B) 1.968
Thread Length (C) 1.000
Stud Length (A) 1.125
Thread Direction Right Hand
Thread 7/16-20 UNF
Bore Size 7/16
B 0.843
K 0.625

Product facts, help and info

Qty:
Lead time is 5-7 days

€ 19.37

Technical Details

MB-07S 7/16inch Right Hand Studded Rod End Bearing

Materials
  • Housing: Low carbon steel 230M07PB, zinc plated & colour passive
  • Race: Bronze LB4
  • Ball: Low carbon steel 230M07PB, case hardened electro-less nickel plated.
  • Stud: Low carbon steel 230M07PB, zinc plated & colour passive

    • MB-07S 7/16inch Right Hand Studded Rod End Bearing

    contact_details

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
