Product- Details

MB-08 1/2inch Right Hand Rod End Bearing

Weight (Kg) : 0.00

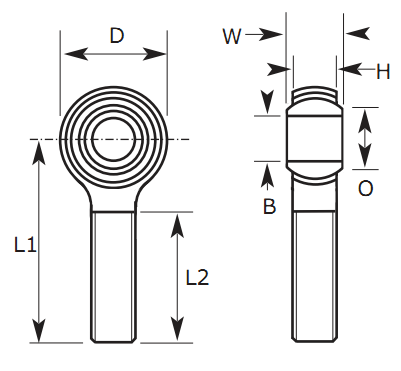

Attribute	Value
Ball Width (W)	0.625
Housing Depth (H)	0.500
Thread Direction	Right Hand
Length of Thread (L2)	1.500
Shaft Centre Height (L1)	2.438
Thread	1/2-20 UNF
Bore Size	1/2
Housing Dia (D)	1.312

Product facts, help and info

Qty:

Lead time is 5-7 days

€ 18.64

Technical Details

MB-08 1/2inch Right Hand Rod End Bearing

MB - Series is our 4-piece standard range of maintenance required general purpose male rod ends suitable for medium heavy industrial/mechanical load applications requiring low friction and good wear resistance.

Materials

Housing: Low carbon steel 230M07PB, zinc plated & colour passive

Race: Bronze LB4

Ball: Low carbon steel 230M07PB, case hardened & electro-less Nickel plated.

Specification

ELV & RoHS Compliant.

Temperature Range

-34°C to +149°C

MB-08 1/2inch Right Hand Rod End Bearing
