MBL-05S 5/16inch Left Hand Studded Rod End Bearing

MBL-05S 5/16inch Left Hand Studded Rod End Bearing

Weight (Kg) : 0.00

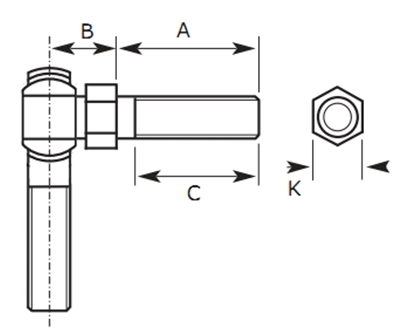

Attribute Value
Thread Length (C) 0.594
Stud Length (A) 0.687
Thread Direction Left Hand
Thread 5/16-24 UNF
Bore Size 5/16
B 0.547
K 0.437
A+B 1.234

Product facts, help and info

Qty:
Lead time is 5-7 days

€ 13.26

Technical Details

MBL-05S 5/16inch Left Hand Studded Rod End Bearing

Materials
  • Housing: Low carbon steel 230M07PB, zinc plated & colour passive
  • Race: Bronze LB4
  • Ball: Low carbon steel 230M07PB, case hardened electro-less nickel plated.
  • Stud: Low carbon steel 230M07PB, zinc plated & colour passive

    • MBL-05S 5/16inch Left Hand Studded Rod End Bearing

    contact_details

    Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
