MP-M06 6mm Right Hand Rod End Bearing
MP-M06 6mm Right Hand Rod End Bearing
Weight (Kg) : 0.00

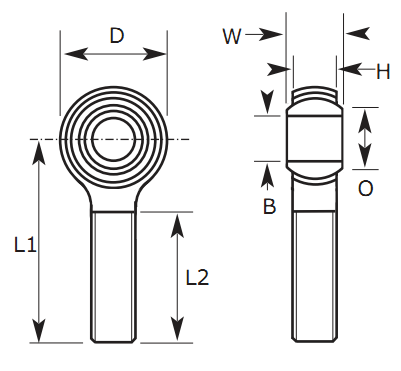

| Attribute | Value |
|---|---|
| Housing Depth (H) | 6.75 |
| Thread Direction | Right Hand |
| Length of Thread (L2) | 22 |
| Shaft Centre Height (L1) | 36 |
| Thread | M6x1.00 |
| Bore Size | 6 |
| Ball Width (W) | 9 |
| Housing Dia (D) | 18 |
Product facts, help and info
Technical Details
| MP-M06 6mm Right Hand Rod End Bearing Where possible rod ends should be mounted vertically (i.e. the housing member to the top) as this will maximise efficiency and life of the product. |
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
