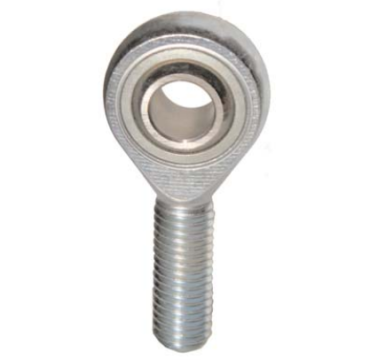

MS-M05 5mm Right Hand Rod End Bearing
MS-M05 5mm Right Hand Rod End Bearing
Weight (Kg) : 0.00

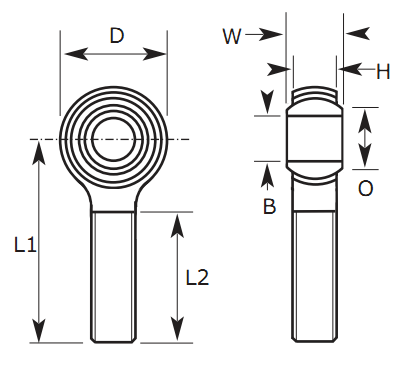

| Attribute | Value |
|---|---|
| Housing Dia (D) | 18 |
| Thread Direction | Right |
| Length of Thread (L2) | 19 |
| Shaft Centre Height (L1) | 33 |
| Thread | M5x0.80 |
| Bore Size | 5 |
| Ball Width (W) | 8 |
| Housing Depth (H) | 6 |
| Static Load Rating Radial | 28,800N |
Product facts, help and info
Technical Details
| MS-M05 5mm Right Hand Rod End Bearing MS - Series is our 3 piece steel on steel range of general purpose male rod ends incorporating a thin PTFE fabric between the ball and the liner material, suitable for high shock loads and medium to heavy industrial/mechanical load applications requiring low friction. Materials Specification Temperature Range |
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
