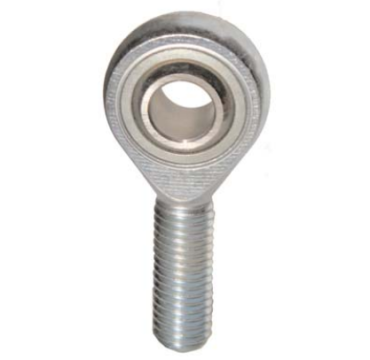

MSL-06SS 3/8inch Left Hand Rod End Bearing (Stainless Steel)
MSL-06SS 3/8inch Left Hand Rod End Bearing (Stainless Steel)
Weight (Kg) : 0.00

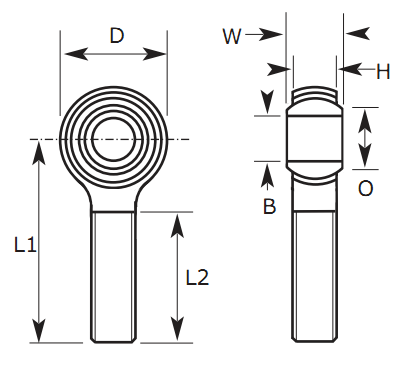

| Attribute | Value |
|---|---|
| Housing Dia (D) | 1.000 |
| Thread Direction | Left |
| Length of Thread (L2) | 1.250 |
| Shaft Centre Height (L1) | 1.938 |
| Thread | 3/8 UNF |
| Bore Size | 3/8 |
| Ball Width (W) | 0.500 |
| Housing Depth (H) | 0.406 |
Product facts, help and info
Technical Details
| MSL-06SS 3/8inch Left Hand Rod End Bearing (Stainless Steel) MS - Series is our 3 piece steel on steel range of general purpose male rod ends incorporating a thin PTFE fabric between the ball and the liner material, suitable for high shock loads and medium to heavy industrial/mechanical load applications requiring low friction. Materials Specification Temperature Range |
Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
