SPAX2500 Cogged Wedge Belt (XPA2500)

SPAX2500 Cogged Wedge Belt (XPA2500)

Weight (Kg) : 0.00

Attribute Value
External Length 2518
Brand MEDWAY
Depth 10
Top Width 12.7
Pitch Length 2500

Product facts, help and info

Qty:
Lead time is 5-7 days

€ 26.43

Technical Details

SPAX2500 Cogged Wedge Belt (XPA2500)

The Medway cogged wedge belt is a temperature and oil resistant universal drive belt with antistatic properties that has a deeper cross section than conventional v-belts, this increase in height ensures excellent grip and greater power ratings, and due to its design can be used with small pulley diameters. It is suitable for a wide range of activities and is used in both industrial machinery and agricultural equipment that may require high belt speeds.

Construction and Features
  • The tensile member consists of a specially treated higher strength polyester cord to transmit tensile forces, withstand shock loads and due to its design can be used with small pulley diameters.
  • The moulded cogged design provides high flexibility as well as lower operating temperatures.
  • The belt compound converts tensile forces on the sidewalls into longitudinal forces in the tensile member

    Standards
  • Cogged wedge belts conform to 1504184, D1N7753 and 853790, they meet 1501813 for static conductivity and have an operating temperature range of -30°C - +60°C.

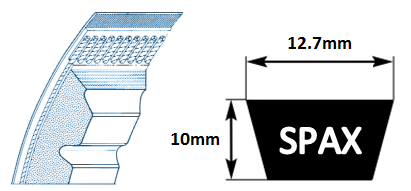

    Dimension
  • 12.7mm top width x 10mm deep

    SPAX section wedge belt

SPAX2500 Cogged Wedge Belt (XPA2500)

contact_details

Disclaimer: Should a manufacturer of a given part not be available then a direct equivalent from an alternative manufacturer will be supplied.
